Jacquard
Changshu Jacquard
Discover the power of precision weaving with the Changshu Jacquard Machine. Designed for efficiency and accuracy, this state-of-the-art machine brings your textile designs to life with exceptional detail and quality.
GT512L Electronic Jacquard Machine
Product Description
GT512L High-Performance Electronic Jacquard Technique parameters
1. Type of shedding: double lift, full clear open
2. Lifting knife mechanism: driven by concentric shaft of conjugate cam
3. Lifting needles: 1408~6144
4. Controller : CFJC320
5. Memory capacity : 4GB(expandable upto 32GB）
6. Longitudinal lifting packs: 16
7. Overall dimension: 950(width)*1170( height )
GT512T Electronic Jacquard Machine
Product Description
GT512T High-performance Electronic Jacquard Technique parameters
1. Type of shedding: double lift, full clear open
2. Lifting knife mechanism: driven by concentric shaft of conjugate cam
3. Lifting needles: 8448~20480
4. Controller : CFJC320
5. Memory capacity : 4GB(expandable upto 32GB)
6. Longitudinal lifting packs : 32
7. Overall dimension:1610(width)*1250(height)

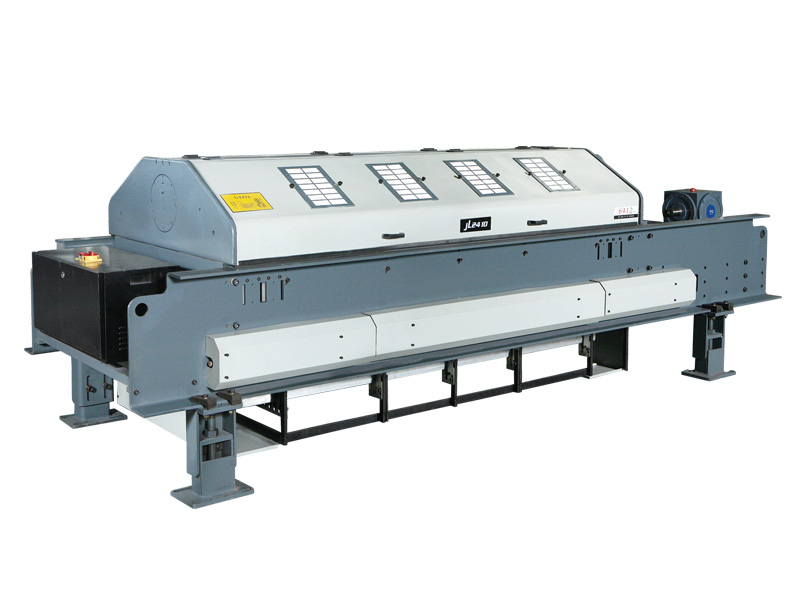

JL2410 Electronic Jacquard Machine
Product Description
JL2410 High-speed Electronic Jacquard Technique parameters
1. Type of shedding: double lift, full clear open
2. Lifting knife mechanism: driven by concentric shaft of conjugate cam
3. Lifting needles: 5376~9216
4. Controller : CFJC320
5. Memory capacity : 4GB(expandable upto 32GB)
6. Longitudinal lifting packs: 24
7. Overall dimension : 1320(width)*1250(height)

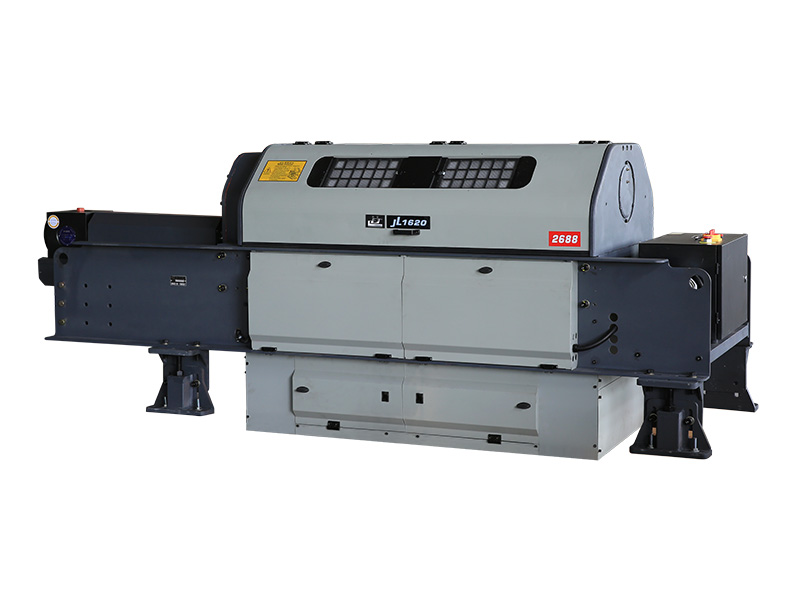

JL1620 High Speed Electronic Jacquard Machine
Product Description
JL1620 High-speed Electronic Jacquard Technique parameters
1. Type of shedding: double lift, full clear open
2. Lifting knife mechanism: driven by concentric shaft of conjugate cam
3. Lifting needles: 1408~6144
4. Controller : CFJC320
5. Memory capacity : 4GB(expandable upto 32GB）
6. Longitudinal lifting packs: 16
7. Overall dimension : 950(width)*1200(height)
JL1630 Electronic Jacquard Machine
Product Description
JL1630 High-speed Electronic Jacquard Technique parameters
1. Heaviest Jacquard Model in the textile industry
2. Comes with 15.6 inch Control Panel Display
3. Can lift Harness upto 55000 Hooks
4. Compatible with all Rapier Looms in the market
5. M9 Modules as standard
6. Lifting Needles: 2688 – 10240
7. Overall dimension : 950(width)*1200(height)
