Jacquard
SuperCAM Jacquard
An Electronic Jacquard that provides the most intelligent weaving solution.
M7 Module Core Advantages
The M7 module adopts internationally advanced design principles.It is independently developed and owns national patents as a high-performance hook selector.
1. Stability and reliability : Bigger contact aid tolerance, Independent heat dissipation design, Long service life.
2. Readiness to use : Jacquarding upon power on, adsorb reliable, No preheating required.
3. High sealing performance : Fully enclosed dust-proof design in working area.
4. Low energy consumption : Optimized hook selection mechanism, without return spring, reduce power consumption.
The Conjugate Cam Features
1. The conjugate cam structure allows designing the open-shed curve as needed.The stationary angle range ensures reliability of weft insertion and improves weaving efficiency.
2. Lower open-shed size, reduces warp tension.
3. Low energy consumption, reduced vibration.
4. More conducive to the hook selection action of module, extends the service life, and meets the high-speed weaving requiremeents.
5. High precision in machining and installation reduce emissions and noise.

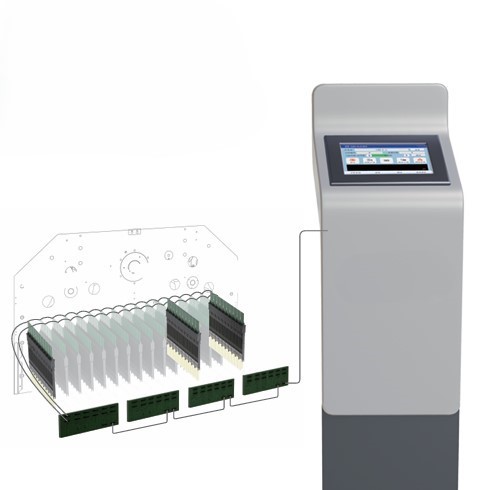

Electronic Control System
1. Bigger full-color touch screen display.
2. eMMC storage ensures pattem data accuracy.
3. Dual network ports for transferring patterns over networnic.
4. Automatic data transmission error correction, intelligent hook selection failure location.
External Drive System
1. Servo motor drive or direct drive motor
2. Universal shaft drive.
